Hardware

Counter

short doc

counter img from: https://eu.landisgyr.com/blog/european-utility-week-2016/advanced-metering-infrastructure/e360

Counter has P1 port for read parameters by DSMR protocol

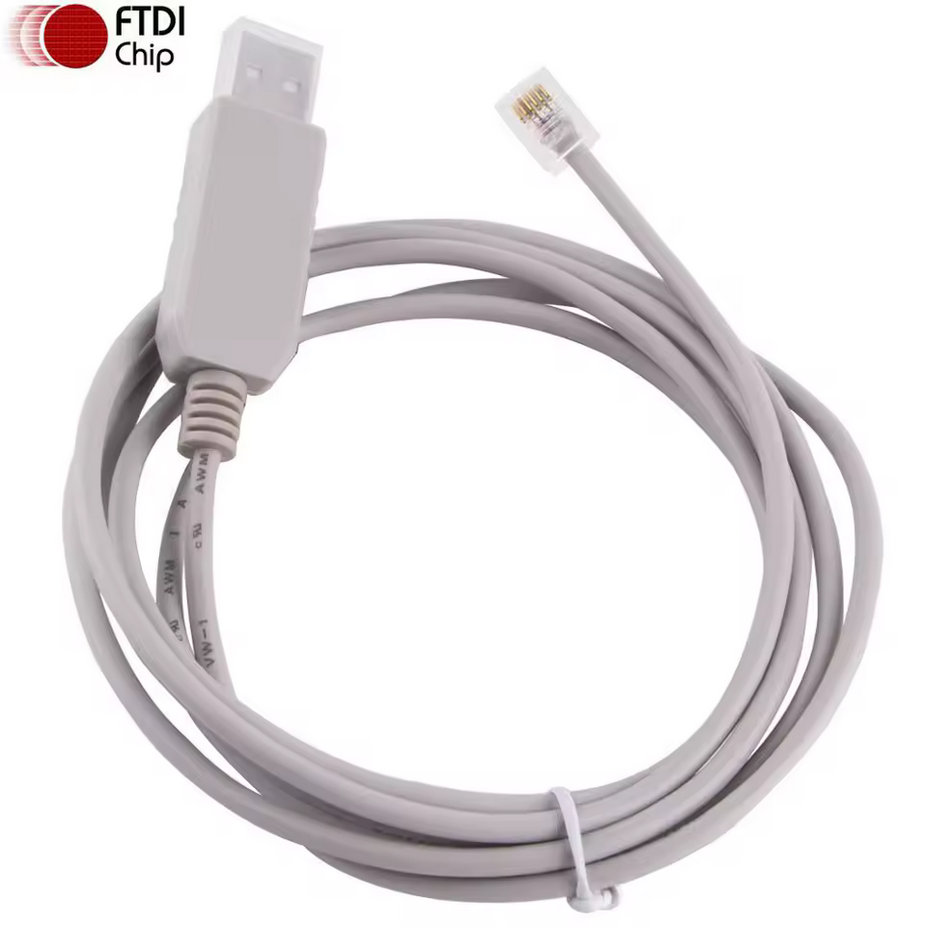

UART FTDI Adapter for connect to P1 port

I buy adapler on aliexpress

adapter

Software

Library

I use https://github.com/ndokter/dsmr_parser library for read values and use example from README

Example

from dsmr_parser import telegram_specifications
from dsmr_parser.clients import SerialReader, SERIAL_SETTINGS_V5

serial_reader = SerialReader(
    device='/dev/ttyUSB0',
    serial_settings=SERIAL_SETTINGS_V5,
    telegram_specification=telegram_specifications.V5
)

for telegram in serial_reader.read():
    print(telegram)  # see 'Telegram object' docs below

run it and get log in telegram format

P1_MESSAGE_HEADER:   50 [None]
P1_MESSAGE_TIMESTAMP:    2025-08-30T16:33:58+00:00  [None]
EQUIPMENT_IDENTIFIER:    45303035313030353533363736******** [None]
ELECTRICITY_USED_TARIFF_1:   4400.065   [kWh]
ELECTRICITY_USED_TARIFF_2:   3889.624   [kWh]
ELECTRICITY_DELIVERED_TARIFF_1:      3714.178   [kWh]
ELECTRICITY_DELIVERED_TARIFF_2:      8656.318   [kWh]
ELECTRICITY_ACTIVE_TARIFF:   0001   [None]
CURRENT_ELECTRICITY_USAGE:   0.026  [kW]
CURRENT_ELECTRICITY_DELIVERY:    0.000  [kW]
LONG_POWER_FAILURE_COUNT:    2  [None]
SHORT_POWER_FAILURE_COUNT:   16 [None]
POWER_EVENT_FAILURE_LOG:         buffer length: 1
     buffer type: 0-0:96.7.19
     event occured at: 2020-01-01T08:15:55+00:00     for: 1599 [s]
VOLTAGE_SAG_L1_COUNT:    20 [None]
VOLTAGE_SWELL_L1_COUNT:      2  [None]
INSTANTANEOUS_VOLTAGE_L1:    229.9  [V]
INSTANTANEOUS_CURRENT_L1:    1  [A]
TEXT_MESSAGE:    None   [None]
INSTANTANEOUS_ACTIVE_POWER_L1_POSITIVE:      0.026  [kW]
INSTANTANEOUS_ACTIVE_POWER_L1_NEGATIVE:      0.000  [kW]
MBUS DEVICE (channel 1)
    MBUS_DEVICE_TYPE:    3  [None]
    MBUS_EQUIPMENT_IDENTIFIER:   47303036343030323031373031******** [None]
    MBUS_METER_READING:      3333.555   [m3] at 2025-08-30T16:30:08+00:00

You can get single values or units:

# Print contents of all available values
# See dsmr_parser.obis_name_mapping for all readable telegram values.
# The available values differ per DSMR version and meter.
print(telegram)
# P1_MESSAGE_HEADER:                42 [None]
# P1_MESSAGE_TIMESTAMP:         2016-11-13 19:57:57+00:00 [None]
# EQUIPMENT_IDENTIFIER:         3960221976967177082151037881335713 [None]
# ELECTRICITY_USED_TARIFF_1:    1581.123 [kWh]
# etc.

# Example to get current electricity usage
print(telegram.CURRENT_ELECTRICITY_USAGE)  # <dsmr_parser.objects.CosemObject at 0x7f5e98ae5ac8>
print(telegram.CURRENT_ELECTRICITY_USAGE.value)  # Decimal('2.027')
print(telegram.CURRENT_ELECTRICITY_USAGE.unit)  # 'kW'

# All Mbus device readings like gas meters and water meters can be retrieved as follows. This
# returns a list of MbusDevice objects:
mbus_devices = telegram.MBUS_DEVICES

# A specific MbusDevice based on the channel it's connected to, can be retrieved as follows:
mbus_device = telegram.get_mbus_device_by_channel(1)
print(mbus_device.MBUS_DEVICE_TYPE.value)  # 3
print(mbus_device.MBUS_EQUIPMENT_IDENTIFIER.value)  # '4730303339303031393336393930363139'
print(mbus_device.MBUS_METER_READING.value)  # Decimal('246.138')
print(mbus_device.MBUS_METER_READING.unit)  # m3

# DEPRECATED: the dictionary approach of getting the values by key or `.items()' or '.get() is deprecated
telegram[obis_references.CURRENT_ELECTRICITY_USAGE]

My script

from dsmr_parser import telegram_specifications
from dsmr_parser.clients import SerialReader, SERIAL_SETTINGS_V5

serial_reader = SerialReader(
    device='/dev/ttyUSB0',
    serial_settings=SERIAL_SETTINGS_V5,
    telegram_specification=telegram_specifications.V5
)

for telegram in serial_reader.read():
    # Example to get current electricity usage
    # print(telegram)  # <dsmr_parser.objects.CosemObject at 0x7f5e98ae5ac8>
    print(telegram.CURRENT_ELECTRICITY_USAGE.value)  # Decimal('2.027')
    print(telegram.CURRENT_ELECTRICITY_USAGE.unit)  # 'kW'

    print(telegram.CURRENT_ELECTRICITY_DELIVERY.value)  # Decimal('2.027')
    print(telegram.CURRENT_ELECTRICITY_DELIVERY.unit)  # 'kW'

    # All Mbus device readings like gas meters and water meters can be retrieved as follows. This
    # returns a list of MbusDevice objects:
    # mbus_devices = telegram.MBUS_DEVICES

    # A specific MbusDevice based on the channel it's connected to, can be retrieved as follows:
    mbus_device = telegram.get_mbus_device_by_channel(1)
    #print(mbus_device.MBUS_DEVICE_TYPE.value)  # 3
    #print(mbus_device.MBUS_EQUIPMENT_IDENTIFIER.value)  # '4730303339303031393336393930363139'
    print(mbus_device.MBUS_METER_READING.value)  # Decimal('246.138')
    print(mbus_device.MBUS_METER_READING.unit)

0.000
kW
0.630
kW
3229.407
m3
